Smart Pumping Solution for High-Viscosity and Anti Shear-Sensitive Liquids

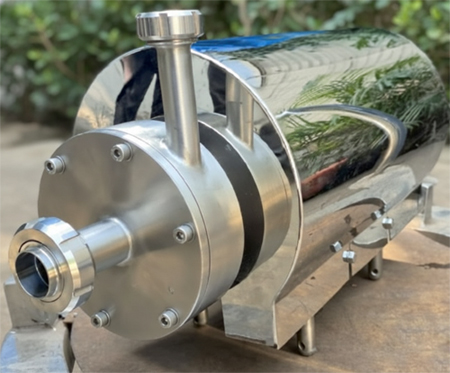

The Milkon Disc Pump is designed to transfer high-viscosity and Anti shear-sensitive liquids efficiently and gently. Its innovative non-impinging, laminar-flow design ensures smooth, clog-free pumping of liquids containing soft solids, viscous materials, and foamy media-marking ideal for dairy, beverage, brewery, food, and cosmetic industries.
Operating Principle
The Milkon Disc Pump operates on a boundary layer laminar-flow principle. A series of parallel rotating discs create a viscous boundary layer between the discs and the pumped fluid. This layer transfers energy through viscous drag, gently moving the fluid without impingement or turbulence - ensuring delicate handling and consistent performance even at high viscosities.
|
| |
| |
Benefits
- Gentle product handling with zero degradation.
- Handles both solid-laden and foamy media.
- Reduced downtime and low maintenance cost.
- Long service life due to minimal wear.
- Energy-efficient with high volumetric efficiency.
|
Key Features
- Non-Impinging Design: Protects shear-sensitive products such as creams, pulps & suspensions.
- No Pulsations: Delivers steady, laminar flow with minimal product disturbance.
- High Viscosity Capability: Suitable for liquids up to 200,000 CPS.
- Self-Cleaning & Easy Maintenance: Open internal design prevents clogging.
- Low NPSH Requirement: Efficient operation even under low suction conditions.
- Low Vibration & Noise: Smooth & quiet performance for hygienic environments.
|
| |
|
Application Areas
- Dairy Products (Cream, Ghee, Yogurt, Cheese Spread, Condensed Milk)
- Beverages (Fruit Pulps, Juices, Syrups, Malt, Sugar Solutions)
- Brewery (Wort, Yeast Slurry, Malt Extracts)
- Food & Confectionery (Chocolate, Caramel, Sauces, Tomato Paste, Jams & Jellies)
- Cosmetics & Personal Care (Lotions, Creams, Shampoo, Gel, Essential Oils)
- Pharmaceutical & Biotech (Suspensions, Syrups, Oral Liquids)
- Industrial Fluids (Lubricants, Oils, Adhesives, Slurries)
|
|
| |
Technical Specifications |
- Capacity Up to 30 m3/hr
- Head UP to 30 meters
- Viscosity Range: Up to 200,000 CENTIPOISE
- Solid Handling: Up to 1" particle size
- Temperature: Up to 100oC
- Connection Size: 1.5" to 3" (Tri-Clamp / SMS / DIN )
- Material of Construction: SS 316 / SS 316L
- Sealing Options Single / Double Mechanical Seal (SiC/Carbide, EPDM, FKM, PTFE)
- Mounting Options Horizontal
- Drive Options Motor, Gearbox, or VFD Control
|
| |
Construction Details |
- Pump Casing & Cover: SS 316 / 316L
- Discs & Shaft: SS 316 / 316L precision-machined
- Elastomers: EPDM / FKM / PTFE / Kairez (as per application)
- Seal Type: Single or double mechanical seal (Car/SlC, SIC/SIC)
|
| |
| Applications At A Glance |
| • Butter • Mayonnaise • Ice Cream Mix • Fruit Pulp • Malt Syrup • Honey • Yogurt • Mustard • Tomato Paste • Chocolate • Sauces • Lotion • Shampoo • Slurry |
| |
Why Choose MILKON DISC PUMP |
| With proven engineering expertise, Milkon Heavy Engineering Pvt. Ltd. designs pumps that combine hygienic construction with efficient performance. Our Disc Pump ensures gentle, reliable, and energy-efficient transfer of viscous and delicate products - making it a trusted choice for food, beverage, and cosmetic processing lines. It's Specially designed for lassi transfer without breaking any properties or texture of product. |
| |
|
|
|
| |
| |
| |
| |
| |
| |
| |
| |
|
